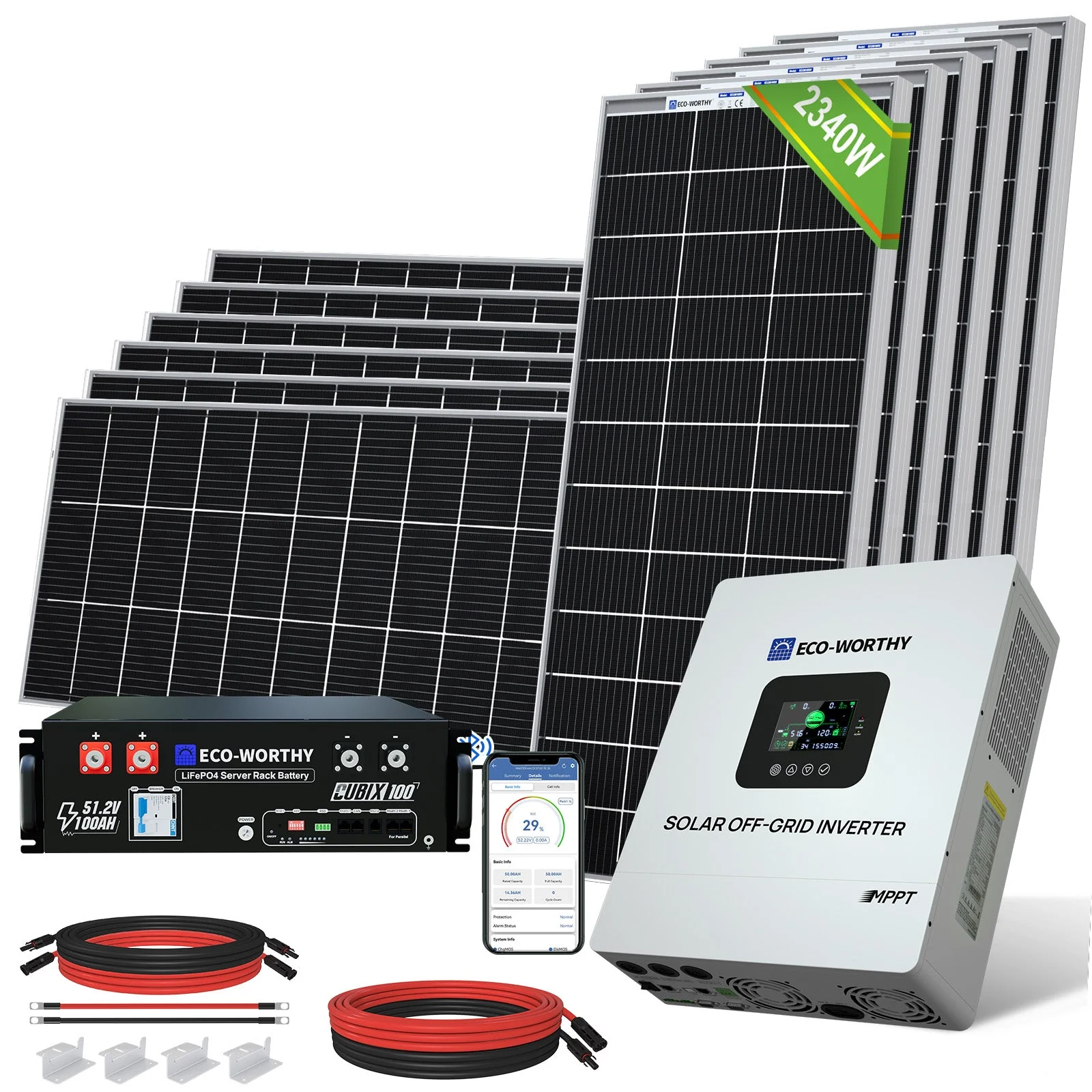

2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit

2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit

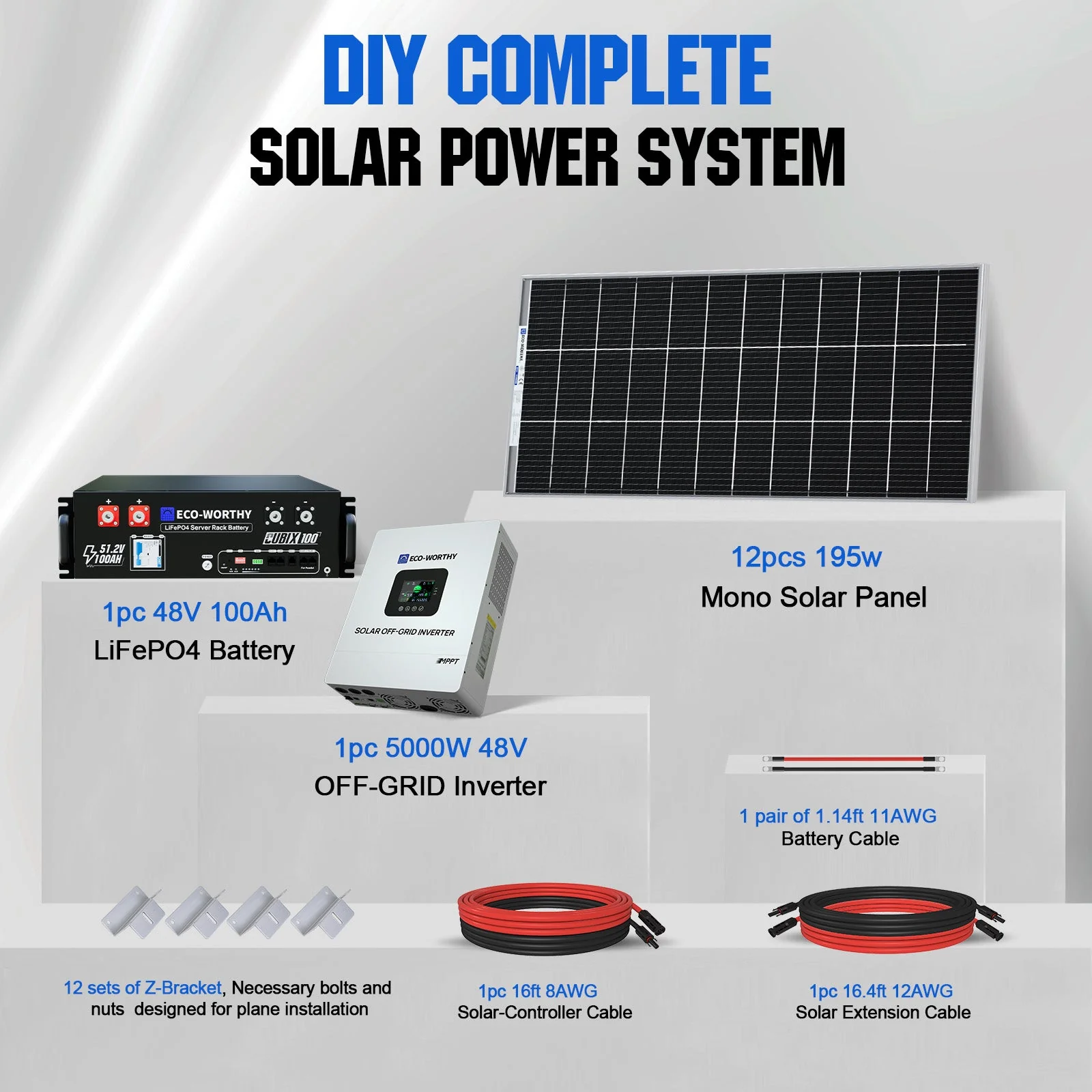

Package Includes:

2340W PV&5.12kWh Battery
12x 195W N-Type Bifacial Solar Panel
1x 5000W 48V Off-grid Inverter Charger
1x 5M 8AWG Extension Cable with MC4
1x 5M 12AWG Solar Cable with MC4
12x Z Mounting Bracket
1x 100Ah 48V Rack LiFePO4 Lithium Battery

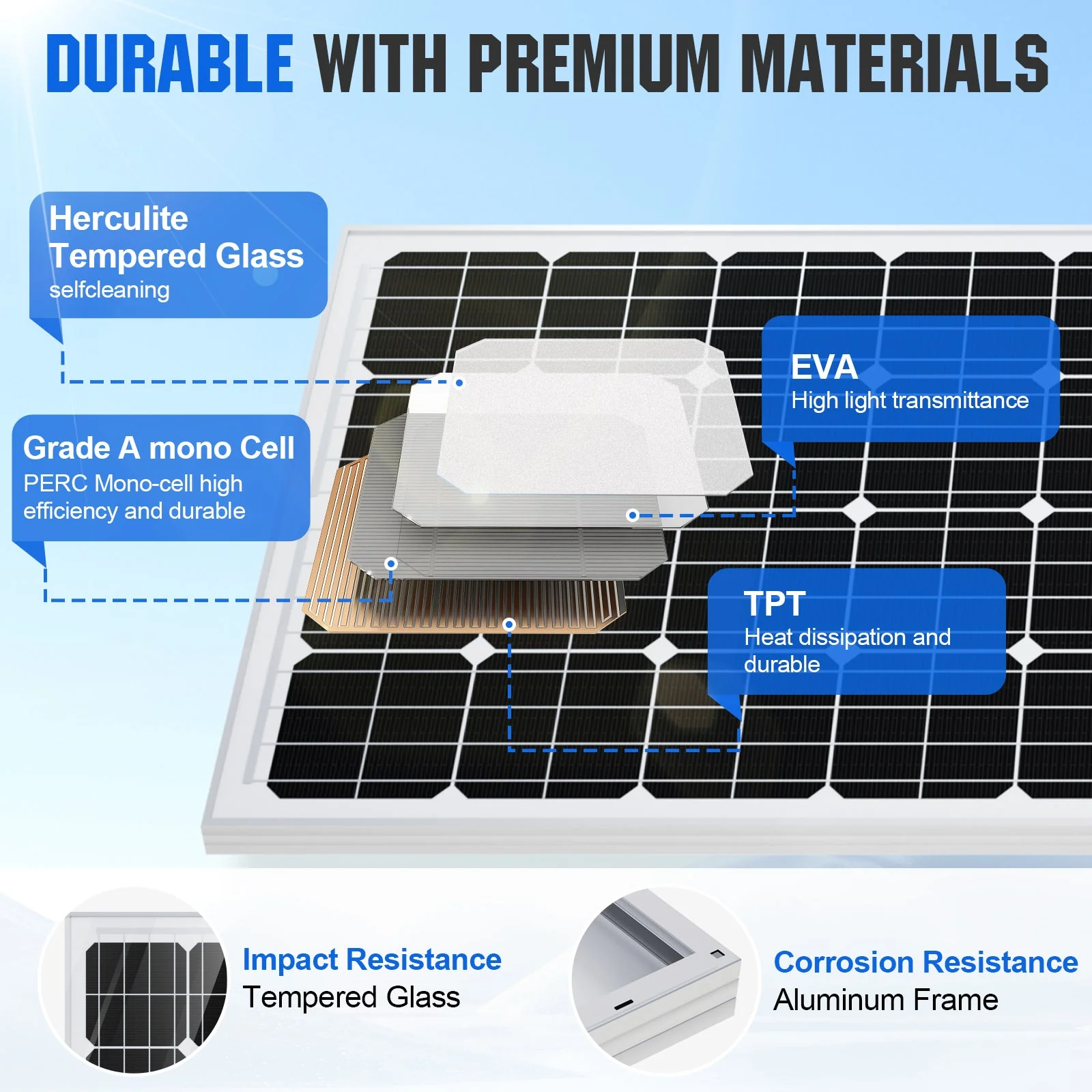

ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power

Rated Power: 195W Solar Cell: Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp): 20.2V Open Circuit Voltage(Voc): 21.2V±3%
Short circuit current: 11.60A±3% Maximum current: 9.65A
Connector Type: MC4
     Module Efficiency STC[%]:19.60%
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: －40℃～ +80℃
Frame: Aluminum alloy frame Weight: 10.5kg/23.15lbs
Size: 58.86x26.18x1.37in (1495*665*35)
1480X 670X 35 mm

5000W 48V Split Phase Solar Hybrid Inverter Charger

Solar Charging 　
PV Charging Current Range: 100A MPPT Voltage Range: 120-450VDC
Max Input Power: 5500W Battery Voltage Range: 40-60VDC
Inverter 　
Output Waveform: Pure Sine Wave Rated Output Power: 5000W
Rated Output: 110V/120VAC 50Hz/60Hz Rated Battery Input Voltage: 48V
Peak Power: 10000W 　

48v 100Ah Rack LiFePO4 Lithium Battery

Battery Capacity: 50Ah Battery Power: 5120Wh
Rated Voltage: 51.2V Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃ Maximum Charge Voltage: 58.4V
Battery Size: 22.55*17.13*5.63inch Battery Weight: 97 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters（16 ft） Conductor: Tinned copper wire
AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts
$3,599.99
2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit—
$3,599.99

Product Information

Shipping & Returns

Description

Package Includes:

2340W PV&5.12kWh Battery
12x 195W N-Type Bifacial Solar Panel
1x 5000W 48V Off-grid Inverter Charger
1x 5M 8AWG Extension Cable with MC4
1x 5M 12AWG Solar Cable with MC4
12x Z Mounting Bracket
1x 100Ah 48V Rack LiFePO4 Lithium Battery

ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power

Rated Power: 195W Solar Cell: Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp): 20.2V Open Circuit Voltage(Voc): 21.2V±3%
Short circuit current: 11.60A±3% Maximum current: 9.65A
Connector Type: MC4
     Module Efficiency STC[%]:19.60%
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: －40℃～ +80℃
Frame: Aluminum alloy frame Weight: 10.5kg/23.15lbs
Size: 58.86x26.18x1.37in (1495*665*35)
1480X 670X 35 mm

5000W 48V Split Phase Solar Hybrid Inverter Charger

Solar Charging 　
PV Charging Current Range: 100A MPPT Voltage Range: 120-450VDC
Max Input Power: 5500W Battery Voltage Range: 40-60VDC
Inverter 　
Output Waveform: Pure Sine Wave Rated Output Power: 5000W
Rated Output: 110V/120VAC 50Hz/60Hz Rated Battery Input Voltage: 48V
Peak Power: 10000W 　

48v 100Ah Rack LiFePO4 Lithium Battery

Battery Capacity: 50Ah Battery Power: 5120Wh
Rated Voltage: 51.2V Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃ Maximum Charge Voltage: 58.4V
Battery Size: 22.55*17.13*5.63inch Battery Weight: 97 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters（16 ft） Conductor: Tinned copper wire
AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts
